Concave 2D colliders

Splitting a concave polygon into multiple polygons that overlap for better physics results and stability.

Now, concave polygons are split into multiple polygons that overlap for better physics results and stability.

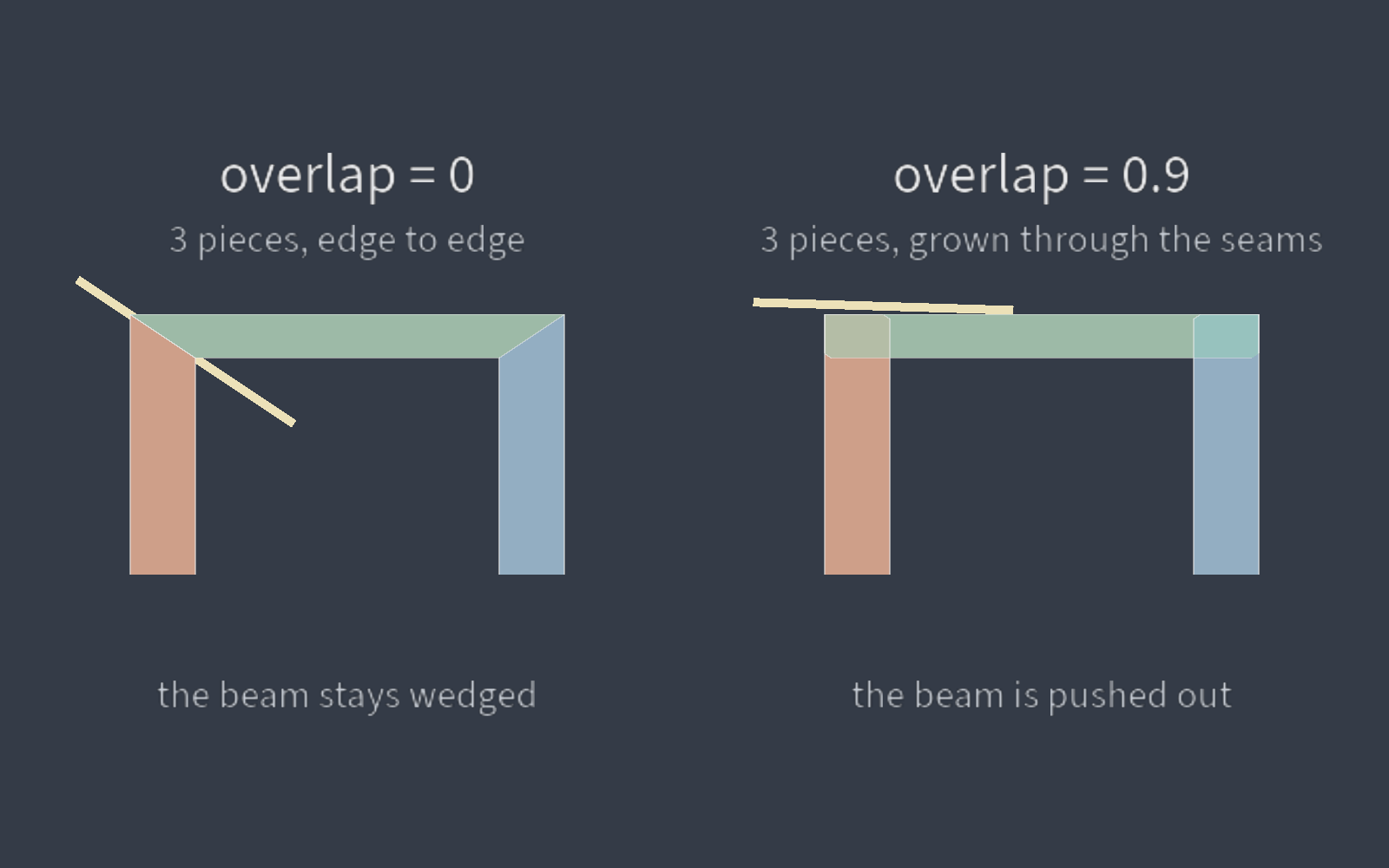

Cutting a polygon used to leave seams, where small objects could get stuck. Erin Catto's Stuck Inside article explains about overlaps the pieces by hand. This does it automatically.

overlap is configurable, 0.9 by default (it leaves a bit of empty room). At 0 you get the plain cut.

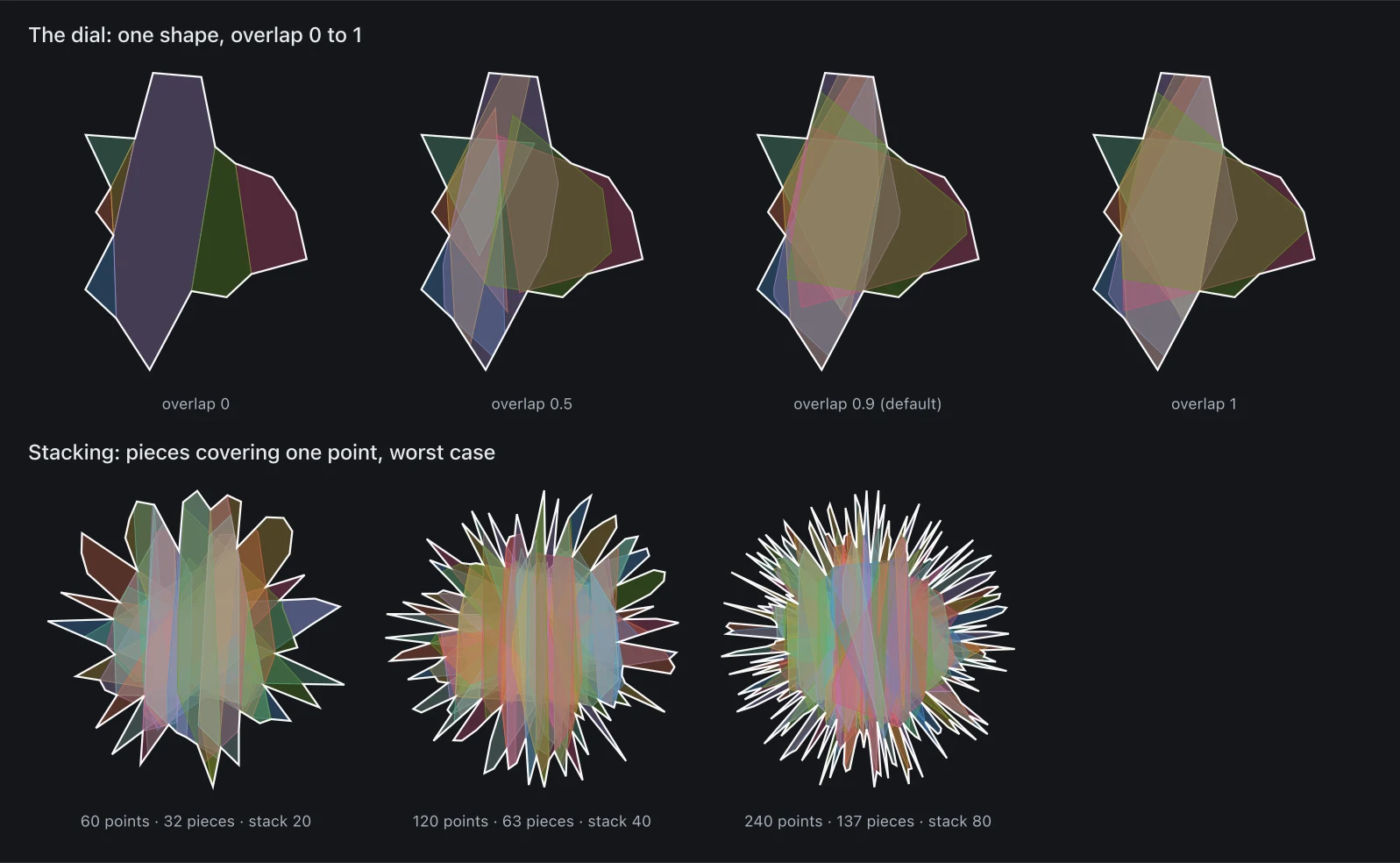

One shape at four overlap settings, and three stars showing how many pieces pile onto one point

Performance

What the times look like (at build time):

kind ns result
trimesh 118 still inside
convex_decomposition, overlap 0 187 still inside
convex_decomposition, overlap 0.9 367 out
  • A trimesh is the cheaper static collider when bodies only touch it from outside. This kind is for dynamic bodies.

Also

  • Mass comes from the ungrown pieces, so a table weighs what its area says.
  • A solids-mode Godot CollisionPolygon2D imports as this kind.
  • geometry2d.convex_decomposition hands the pieces to a script.
