Plugin docks are nodes

Plugin docks are nodes

· 2 min read
Balaur

A plugin's dock is a subtree the editor makes for it. draw(S, k, host) is handed its path, and S.kit fills it with rows instead of drawing them.

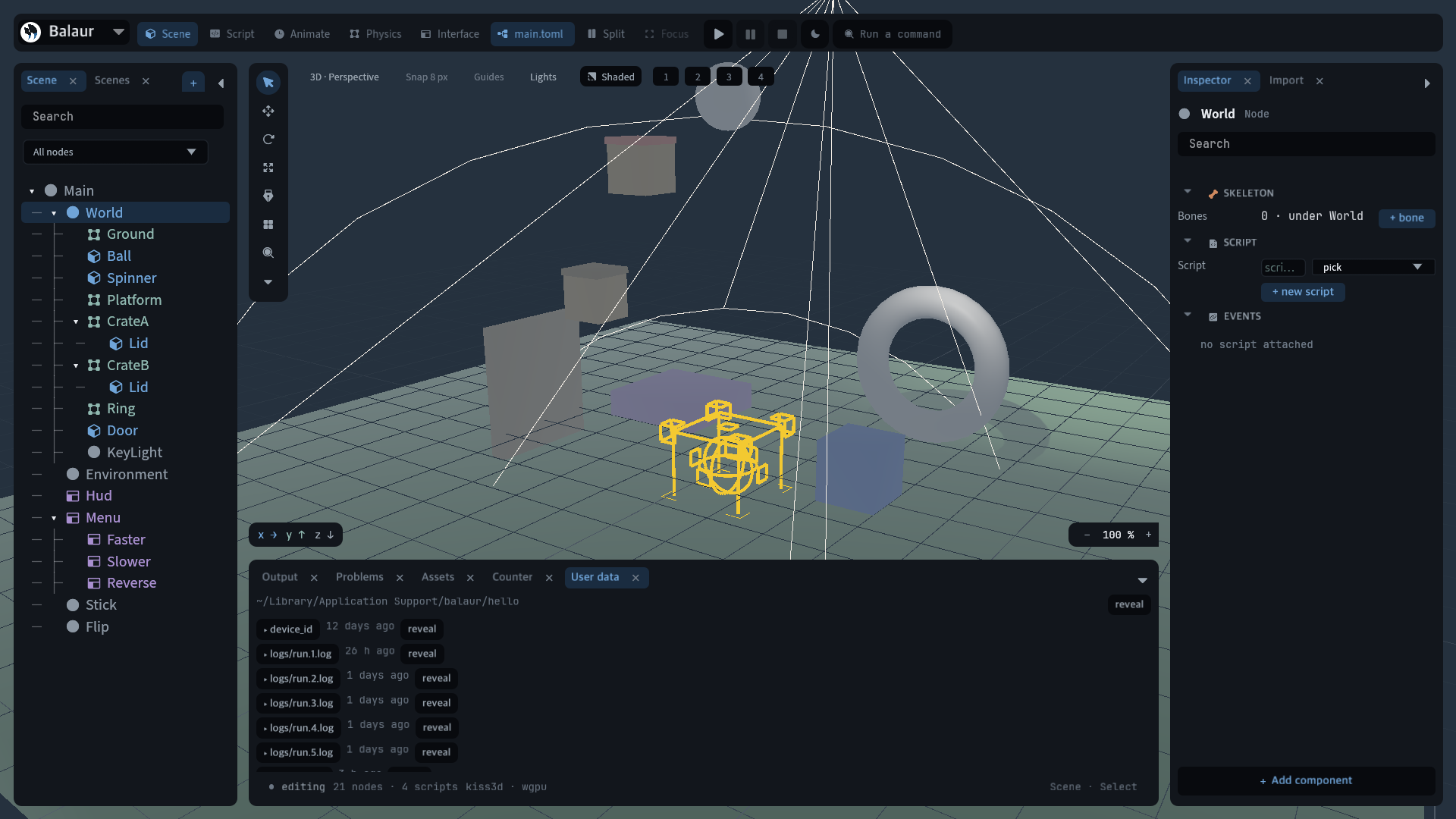

The User data dock, its files and their times as widget nodes

What a plugin is handed

  • host names four places: head for verbs, side for pages, body for rows and foot. Each is a node, from one scene fragment per dock.
  • strip(S, host, name, controls) puts a row of controls on one of them, and rows(S, host, name, specs) puts rows on the body.
  • node(host, name) answers the node itself, for a plugin adding a shape the kit has no verb for.
  • A control is the widget table the editor's own rows are built from, plus an on the editor calls with what the reader changed.
pub fn draw(S, k, host) {
let field = S.kit.field;
let rows = S.kit.rows;
rows(S, host, "body", [
field(S, "token", "abcd1234efgh5678", #{ mask: true, copy: true }),
]);
}

What that buys

  • A plugin's controls are widget nodes, so a theme role dresses them and the same layout places them.
  • A plugin cannot draw outside its dock. The host is its subtree, and no ui handle reaches past it.
  • kit.rn went from 49 ui::* calls to 1. counter.rn, userdata.rn and the Gamend dock are all on it.

The verbs

  • section(title) and empty(text) answer a row. field(S, label, value, opts) masks with mask and copies with copy.
  • tree(S, id, value, opts) answers rows for a map or a list, and edit makes its leaves fields.
  • files(S, id, opts) answers a row per file under a folder; TOML and JSON open as editable trees.
  • tabs(S, host, id, names) and pages(S, host, id, groups) fill the head or the sidebar, and answer which one is open.

A floating window still draws. windows takes draw(S, k) and the ui verbs, because a window has no node of its own yet.
